Androbro Challenge Writeup

Time spent: 9 hours 💀

Overview

This challenge involved reverse engineering an Android APK protected by a native C++ library with layered cryptographic techniques. The goal was to decrypt an encrypted Dalvik bytecode and ultimately recover the AES-encrypted flag.

Categories

  • Mobile (Android) and native reverse engineering (C++)
  • Cryptography
  • Static analysis (IDA, jadx)
    • Alternative: dynamic analysis with Frida (not used in this writeup)

Tools

  • jadx - for decompiling the APK and extracting the native library
  • IDA Free - for disassembling the native library
  • APKLab - for unpacking the APK, modifying and repacking it

Step 1: Unpack and Decompile the APK

  • Use APKLab or jadx to decompile the APK.
  • Extract the native library from:
    lib/x86_64/libragnar.so

    Note: The x86_64 version disassembles more reliably than other architectures.

libragnar.so in jadx

Step 2: Analyze the Native Library with IDA

  • Load libragnar.so into IDA for disassembly.
  • Other disassemblers produced inconsistent or corrupted output, so IDA was the best choice.

Step 3: Locate Key JNI Functions

  • Examine the JNI_OnLoad export to discover JNI interface functions.
  • Identify a critical function at address 0x68ADE with the signature:
    _JNIEnv *jenv, __int64 a2, __int64 a3, __int64 a4
  • This function drives the core cryptographic workflow.

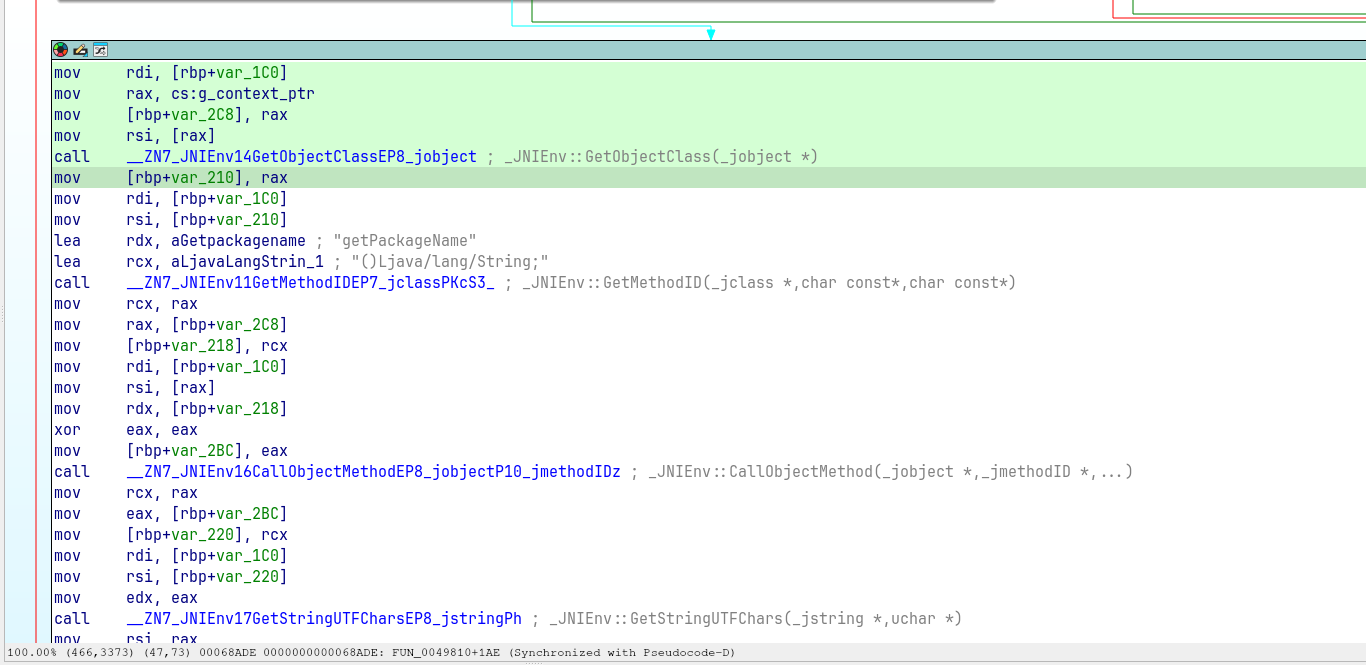

Interesting function

Step 4: Reverse Engineer Core Logic (starting at 0x68AC1)

Key operations performed by this function:

  1. Extract the Package Name
    The app’s package name is retrieved: com.defensys.androbro

  2. Compute SHA256 Using Java APIs

  • The package name is converted into a Java string.
  • A SHA256 digest is computed via Java’s MessageDigest class.
  1. Generate RC4 Key and Input

  • The SHA256 digest is converted to its hexadecimal ASCII string representation.

  • This hex string serves as the RC4 key.

  • The input to the RC4 cipher is the ASCII bytes of the package name.

  1. Decrypt an Encrypted Asset

  • The RC4 output is used as an XOR key to decrypt the file:

    assets/E/M/O/H/G/CMVASFLW.EXE

  • This decrypted file is actually a Dalvik Executable (DEX).

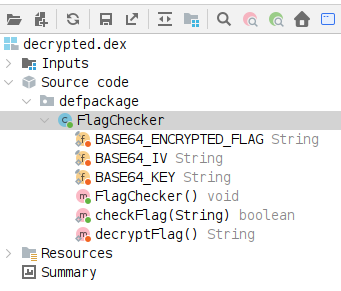

Decrypted Dalvik library

Step 5: Analyze the Decompiled DEX

  • Load the decrypted DEX into jadx or a similar tool.
  • Locate the class: defpackage.FlagChecker
  • Focus on the method: FlagChecker.checkFlag
  • This method contains an AES-encrypted flag and the corresponding parameters.

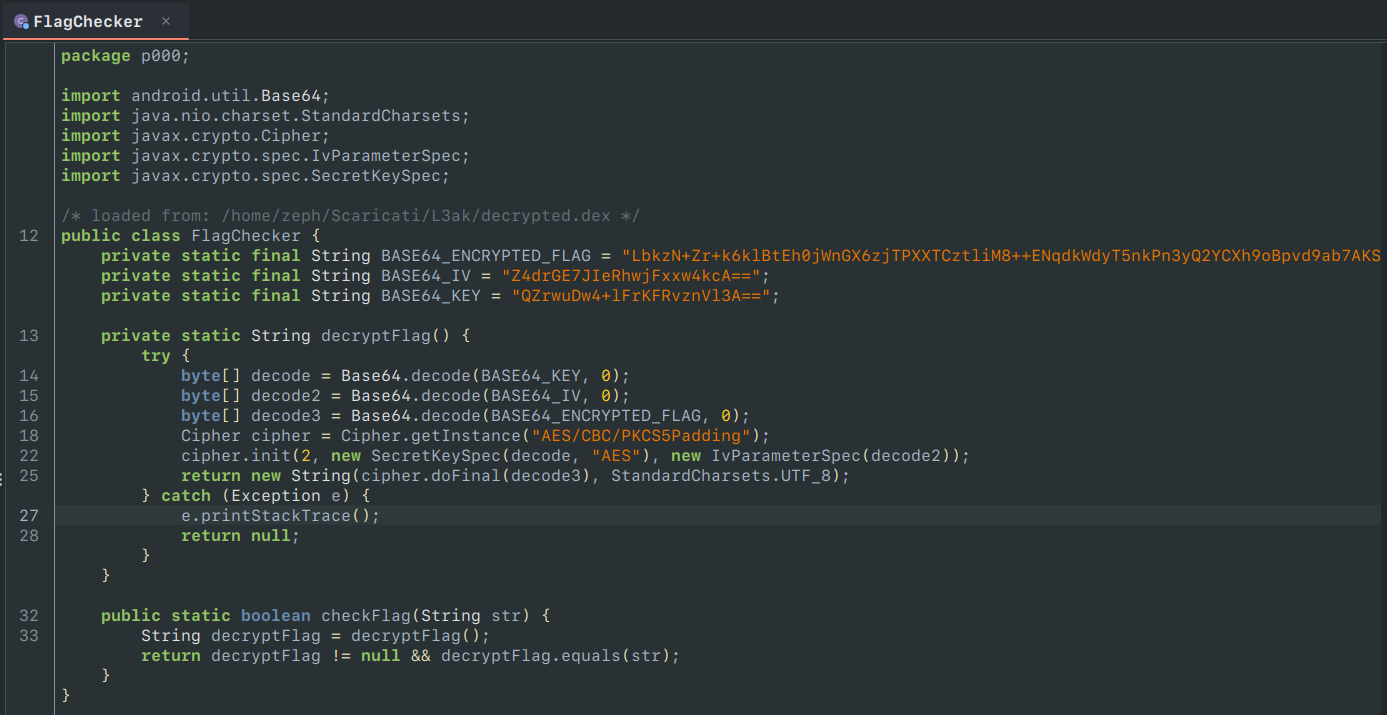

Flag checking code

Step 6: Decrypt the Flag

  • The flag is encrypted using AES-CBC with PKCS5 padding.
  • The key, IV, and ciphertext are all hardcoded Base64 strings in the Java class.
  • Decrypting this yields the final flag.

Final Flag

L3AK{_Using_native_cpp__is_not_really_hard_xd_31412314}

  • Required XOR key for CMVASFLW.EXE (the Dalvik class): 6a209693a9acaf10dcd2e425bab62a5e48698b7fc3

Notes

The challenge authors recommend solving this challenge with Frida: a dynamic instrumentation toolkit for Android. However, I've had multiple issues getting Frida to work or to capture anything. The general idea would've been:

  • Hooking the library, particularly the strcmp functions, and printing the arguments.
  • The app would calculate the correct XOR key and compare it to your input.
  • Using adb to send a Broadcast Intent to trigger the flag check (namely, THE_TRIGER (with the misspelling) and THE_UNLOCKER), so the app would calculate the XOR key and compare it to the input (taken from the Intent's extra argument key)

I've chosen to solve the challenge statically with IDA (The Interactive Disassembler) instead, because:

  1. It's simply more fun (I enjoy static analysis much more).
  2. Frida did not want to work (I've only got a jailed Android device, which I refuse to root), and frida-gadget was severely hindered.
  3. The app seemed to completely ignore any and all messages I'd send via adb shell am broadcast.
  4. The cryptography isn't complicated enough to force me to use other dynamic tools.

Additionally, IDA was the only disassembler that could handle the native library without issues, while others produced corrupted or incomplete outputs.

  • BinaryNinja's output was extremely messy.
  • Ghidra's output was much cleaner, but unreliable; it struggled to identify the xorbuffers function's arguments, making it appear as if it simply ignored one of the two. This made it impossible to figure what was being fed into RC4.
  • It is to be noted that I used the armv8 version of the lib for the first two, but switched to the x86_64 version for IDA, which might've been what got IDA to work better with it.

To confirm the key was right, I bruteforced the first 8 Dalvik magic bytes, which are always dex\n035\0. This gave me the first 8 characters of the XOR key (6a209693). Decrypting the file with this key yielded a partially readable DEX file, which confirmed my approach was correct.
